20kW -50kW Compact DC Solution

MINI DC Charger

Compact and efficient DC charging designed for commercial parking.workplaces, dealerships and fleet facilities. With wall-mounted installationand flexible power options from 20kW to 50kW, it delivers fast chargingperformance with minimal space requirements.

Compact Wall-Mounted Design

Space-saving installation for locations with limited floor space.

20-50kW Power Options

Flexible power configurations for different charging requirements.

Fast DC Charging

DC 200-1000V output range for efficient EV charging.

Smart & Reliable Operation

7" high-brightness touchscreen, OCPP connectivity and IPSS protection.

Fast Charging in a Compact Footprint

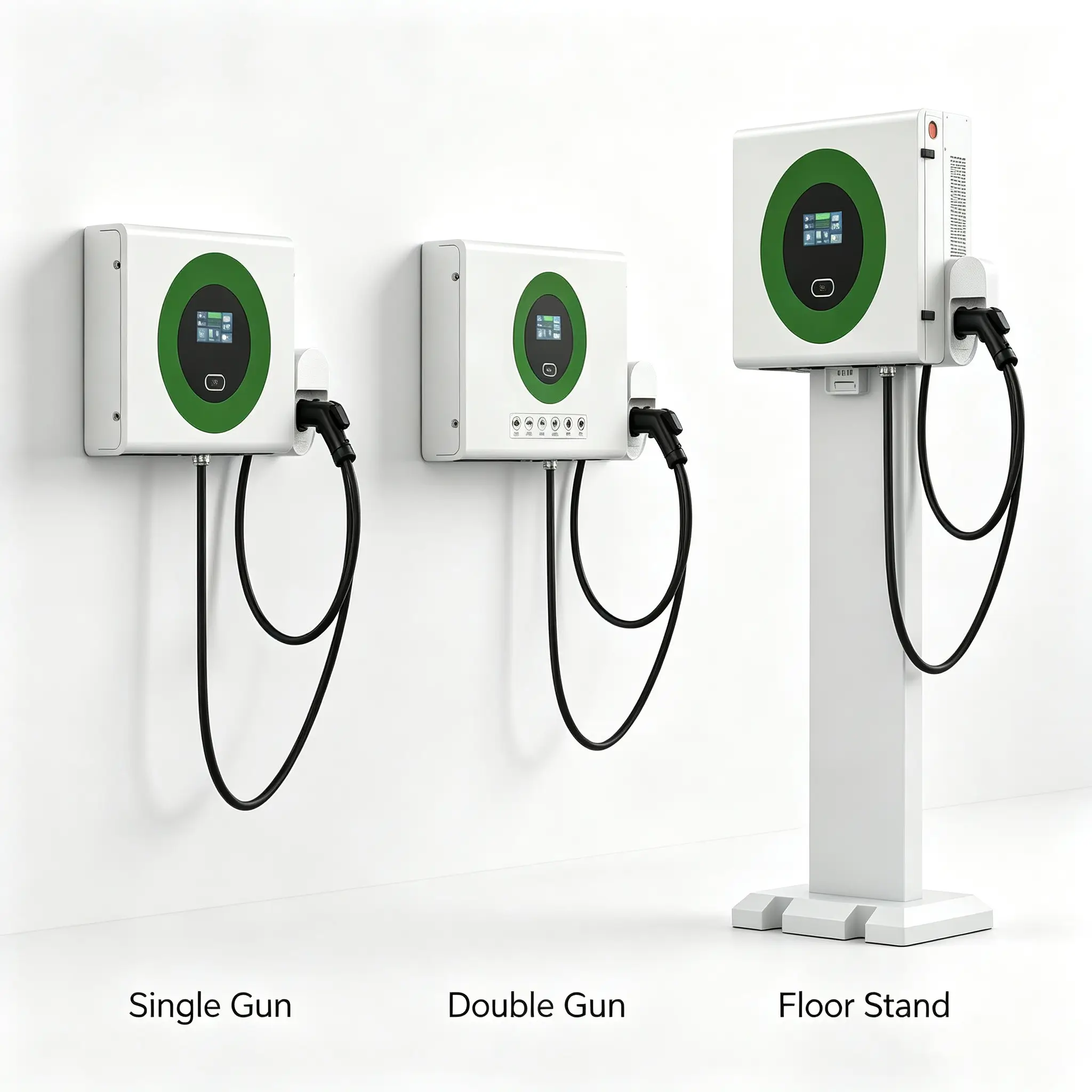

SuperX Mini DC Charger delivers efficient DC fast charging in a compactwall-mounted design. Avallable from 20kW to S0kW, it is designed forcommercial environments where charging performance and spaceefficiency are equally important.

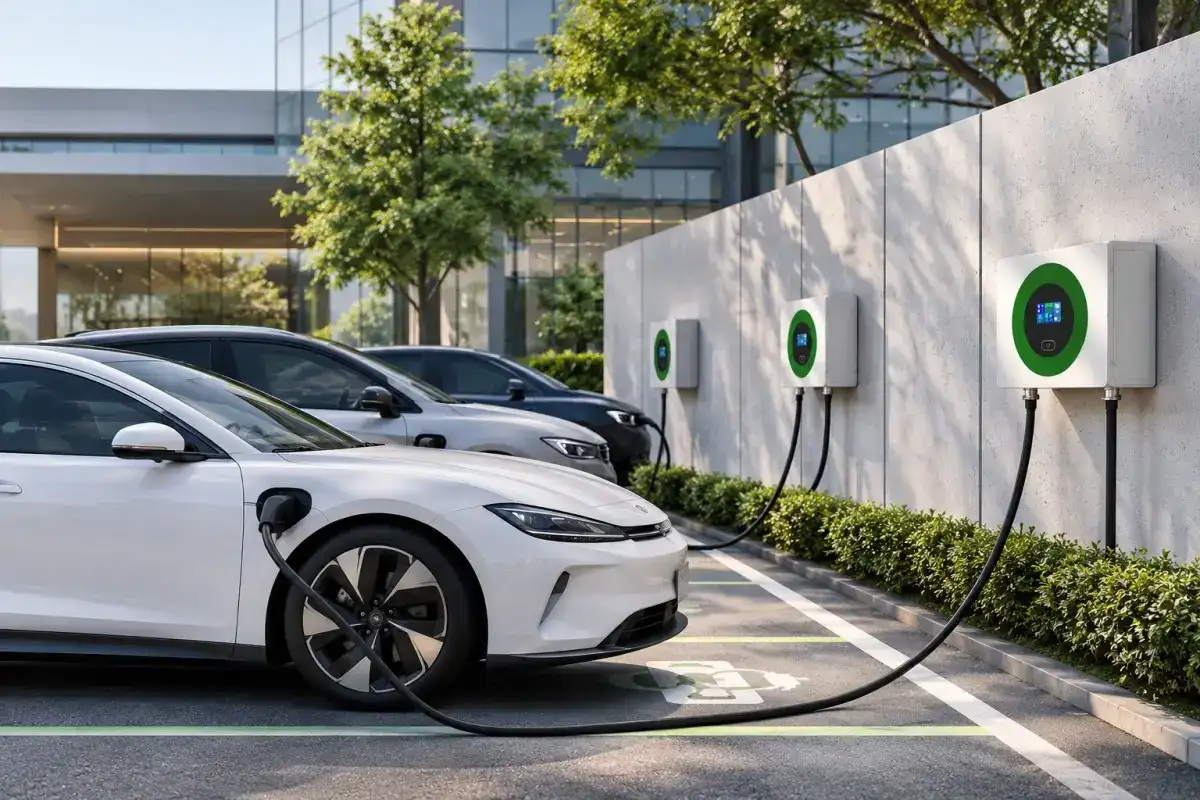

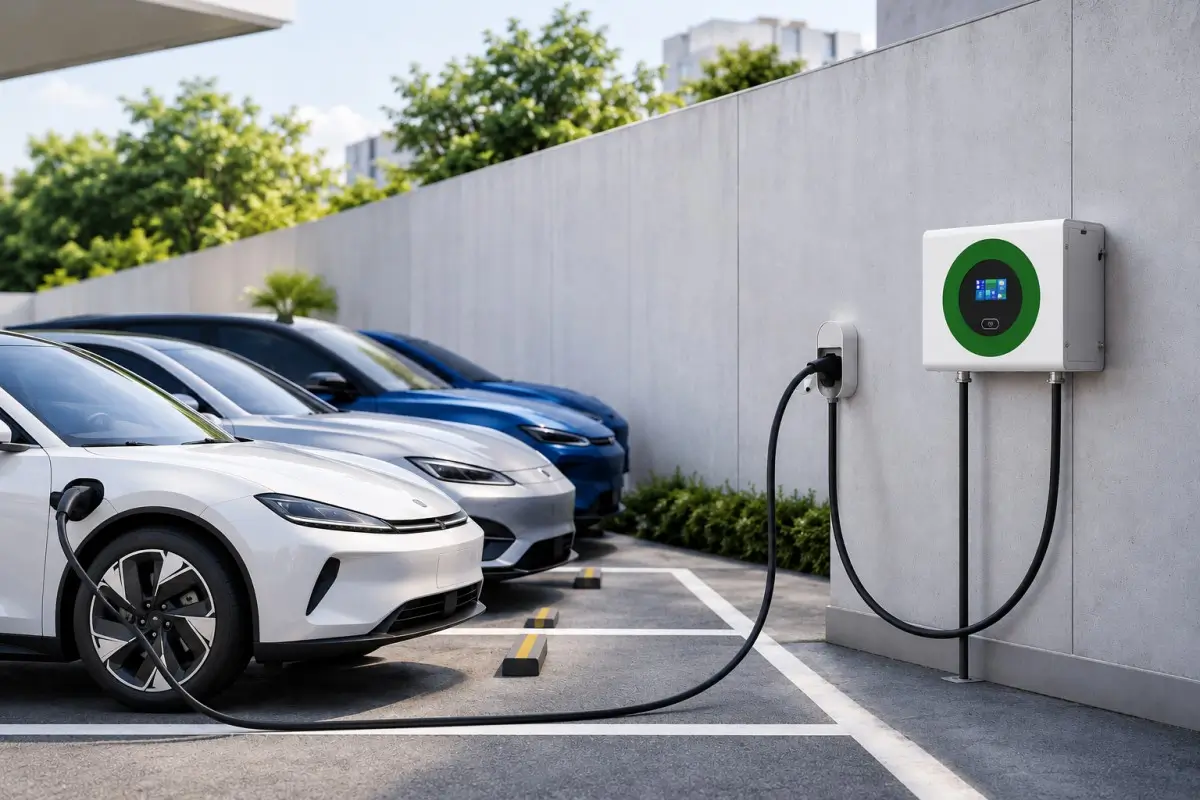

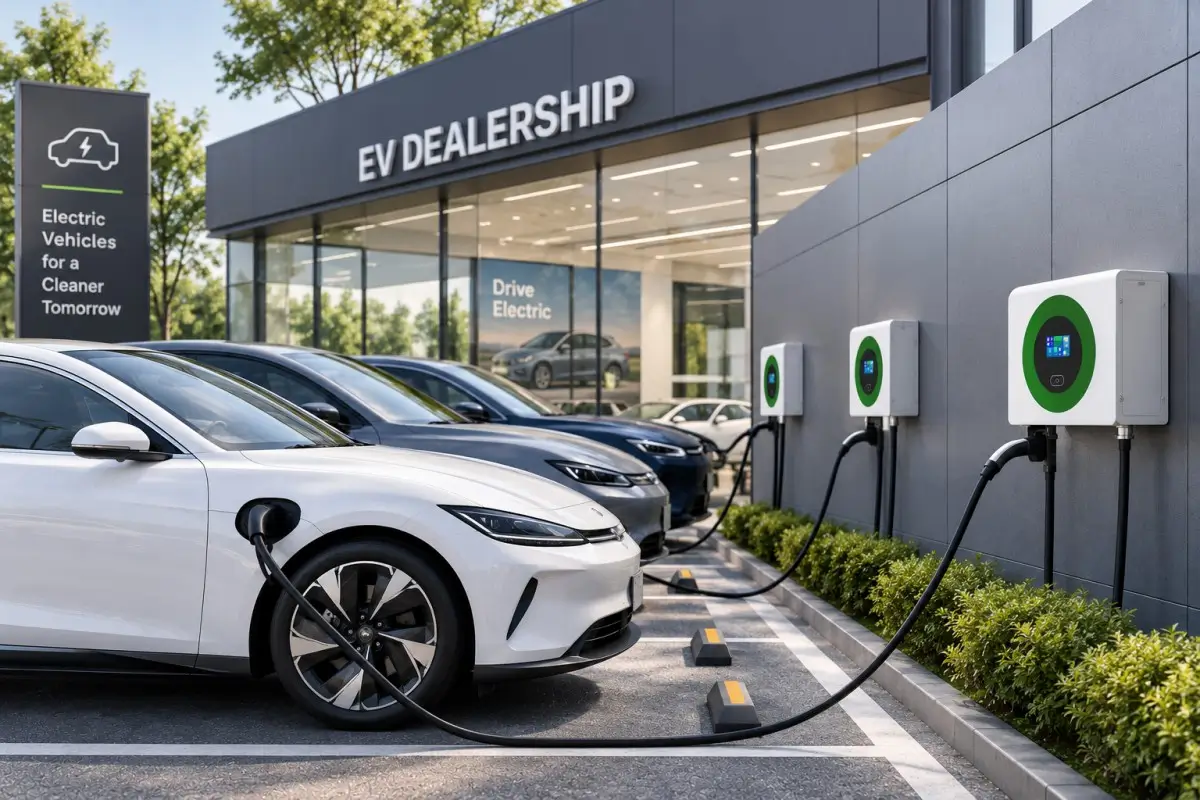

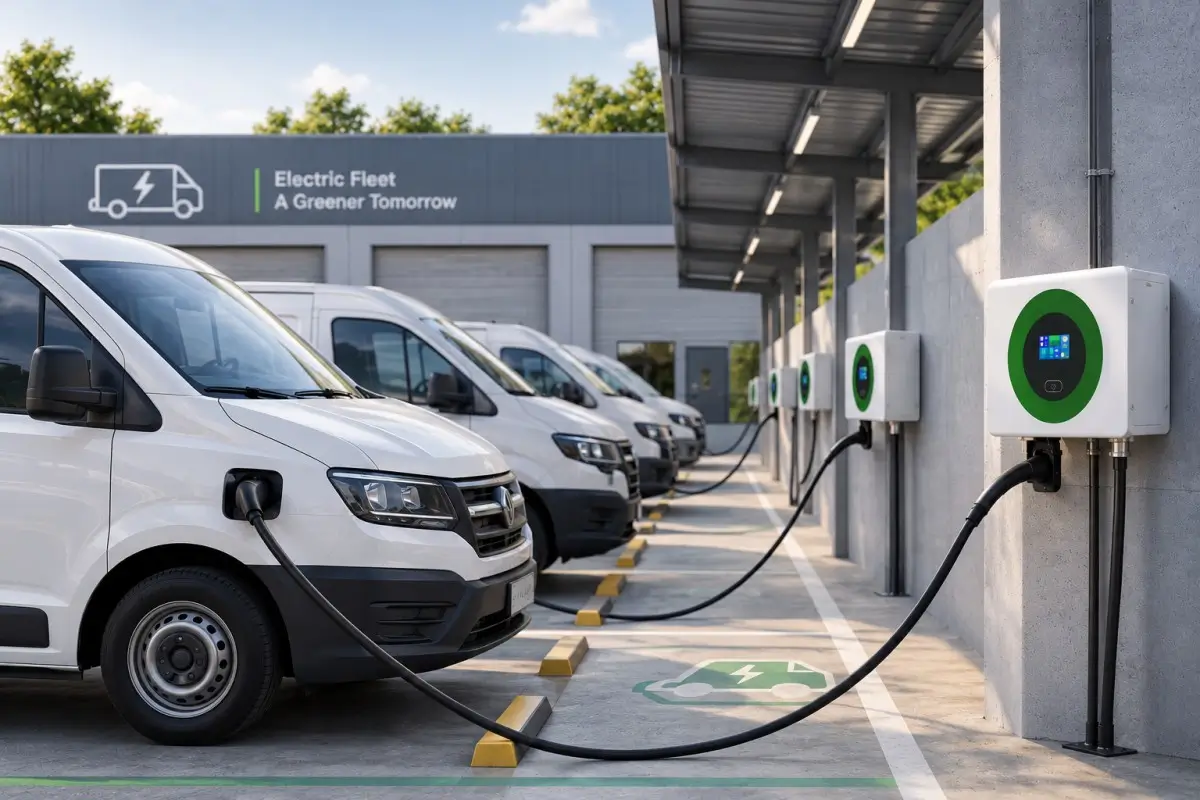

With a 7″ industrial-grade high-brightness touchscreen, OCPP connectivityand multiple charging connector options, the Mini DC Charger provides apractical solution for workplaces, dealerships, commercial parking fecilitiesand fleet operations.

Technical Specifications

Specification	Details
Charging Power	20 / 30 / 40 / 50 kW
Input Voltage	285–475VAC, 45–65Hz, 3 Phase
Output Voltage	DC 50–1000V*
Max Output Current	Up to 133A
Charging Gun	1 Gun
Connector	CCS1 / CCS2 / CHAdeMO / NACS
Display	7" Industrial-Grade High-Brightness LCD Touchscreen
Communication	Ethernet / 4G / WiFi Optional
OCPP	OCPP 1.6 JSON / OCPP 2.0 Optional
Payment	RFID / App / Credit Card Optional
Cooling	Fan Cooled
Protection	IP55
Operating Temperature	-25°C ~ +50°C
Installation	Wall Mounted
Dimensions	750 × 630 × 270 mm
Net Weight	70–90 kg
