High-performance DC fast charging stations designed forcommercial charging networks, fleet depots, and public fast-charginglocations. Available in dual-gun configurations with intelligent
power management.
40kW to 480kW to match different site requirements
Simultaneous charging for higher utilization
0CPP 1.6/2.0,7" touch screen, RFID/ App payment
IPS5, fan cooling. comprehensive safety protections

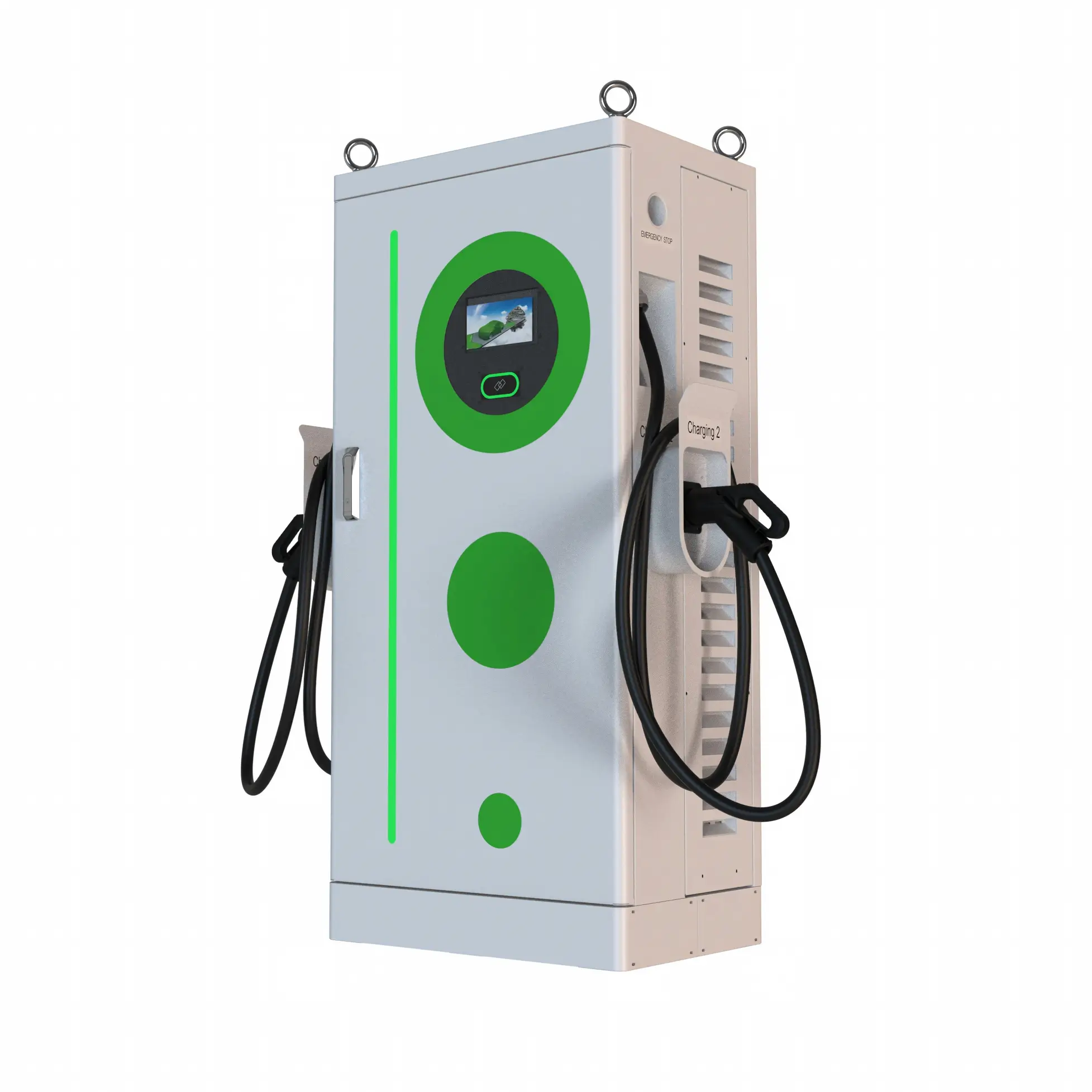

Superx DC Fast Chargers are integrated DC charging solutions built for reliable high-power operation.Covering power ranges from 40kW to 48okW, these chargers support dual-gun simultaneous charging and are compatible with major international standards (CCS, CHAdeMO, GB/T, NACS).
With OCPP connectivity, intelligent power distribution and robust industrial design, they are ideal forhighway stations, urban fast-charging hubs, fleet depots and commercial parking facilities.
| Specifications | 40–80kW Series | 120–240kW Series | 320–480kW Series |
|---|---|---|---|
| Model Range | 40kW / 60kW / 80kW | 120kW / 160kW / 180kW / 240kW | 320kW / 360kW / 480kW |
| Max Power Output | Up to 80kW | Up to 240kW | Up to 480kW |
| Output Current | Up to 266A | Up to 798A | Up to 1596A |
| Output Voltage | DC 50–1000V | DC 50–1000V | DC 50–1000V |
| Charging Guns | 2 Guns | 1–2 Guns | 1–4 Guns |
| Connector | CCS / CHAdeMO / GB/T / NACS | CCS / CHAdeMO / GB/T / NACS | CCS / CHAdeMO / GB/T / NACS |
| Input Voltage | 285–475VAC, 3 Phase | ||
| Efficiency | ≥95.5% | ||
| Display | 7" Industrial High-Brightness Touch Screen | ||
| Communication | Ethernet / 4G / WiFi | ||
| OCPP | OCPP 1.6 (2.0 Optional) | ||
| Payment | RFID / App Payment | ||
| Protection Rating | IP55 | ||
| Cooling System | Fan Cooling | ||
| Installation | Floor Mounted | ||
| Typical Application |
Urban Fast Charging Fleet Support |
Highway Charging Public Fast Charging |
Charging Hubs Heavy-duty Applications |

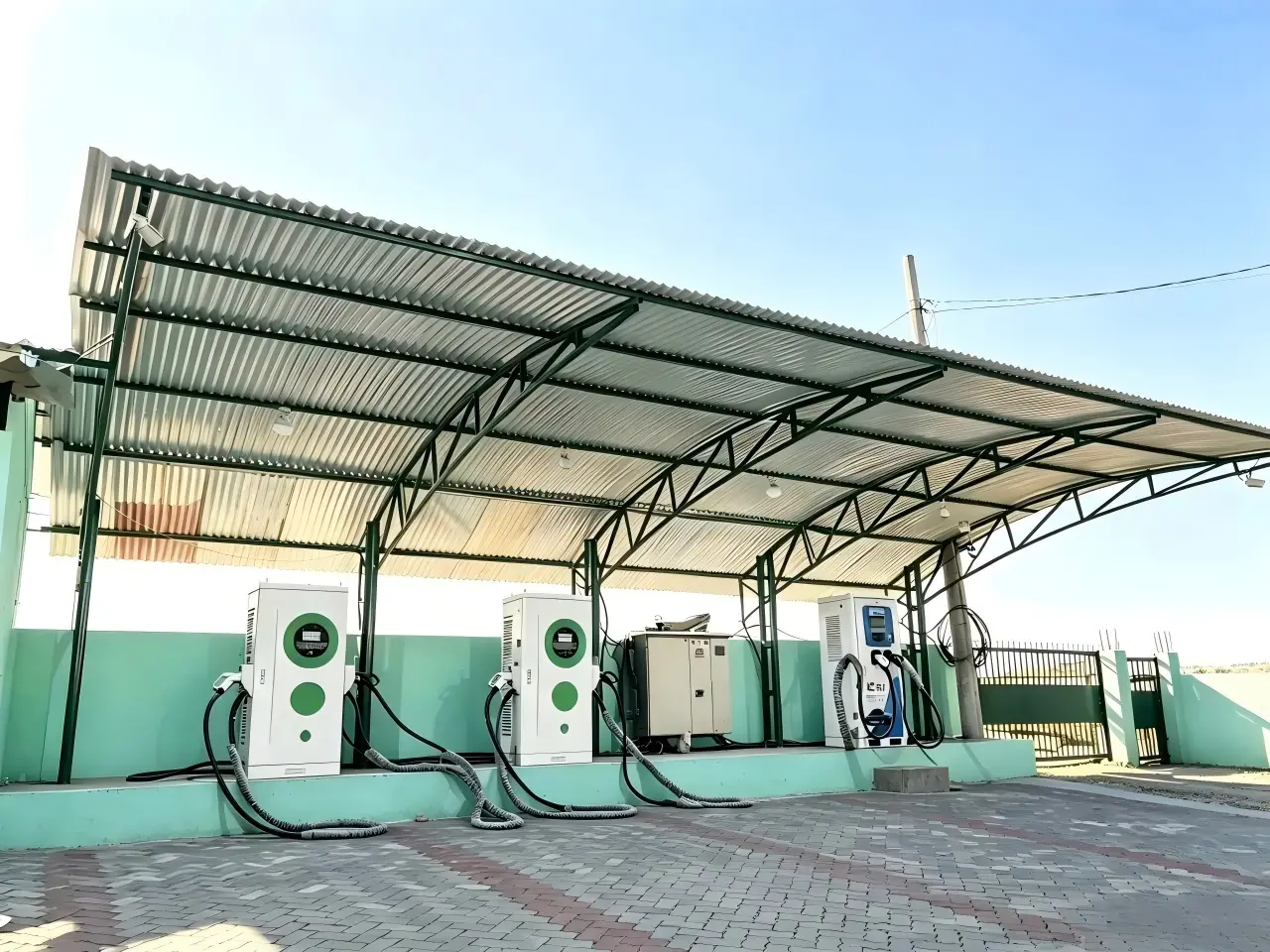

Public fast-charging stations

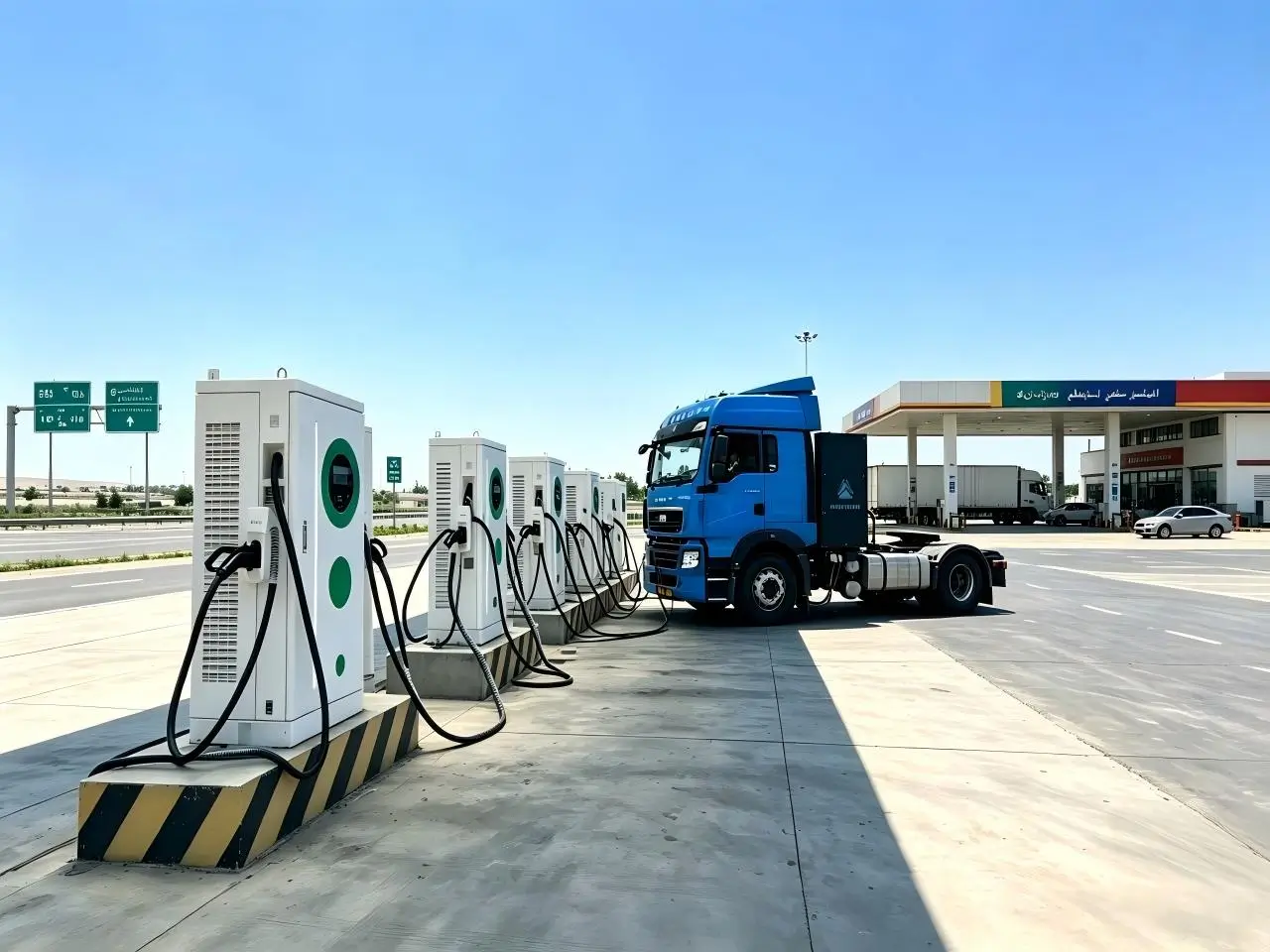

Highway service areas

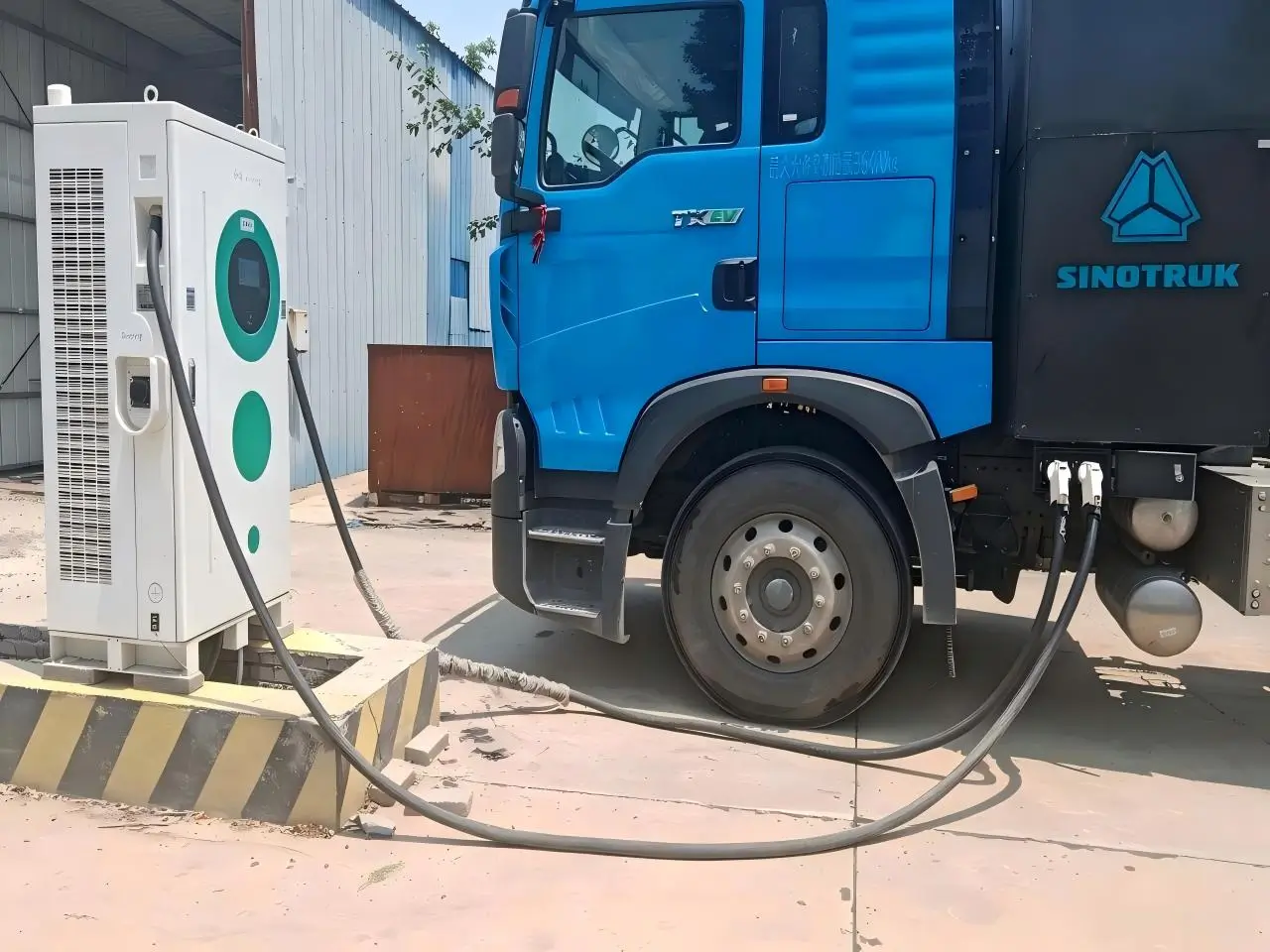

Fleet and logistics depots

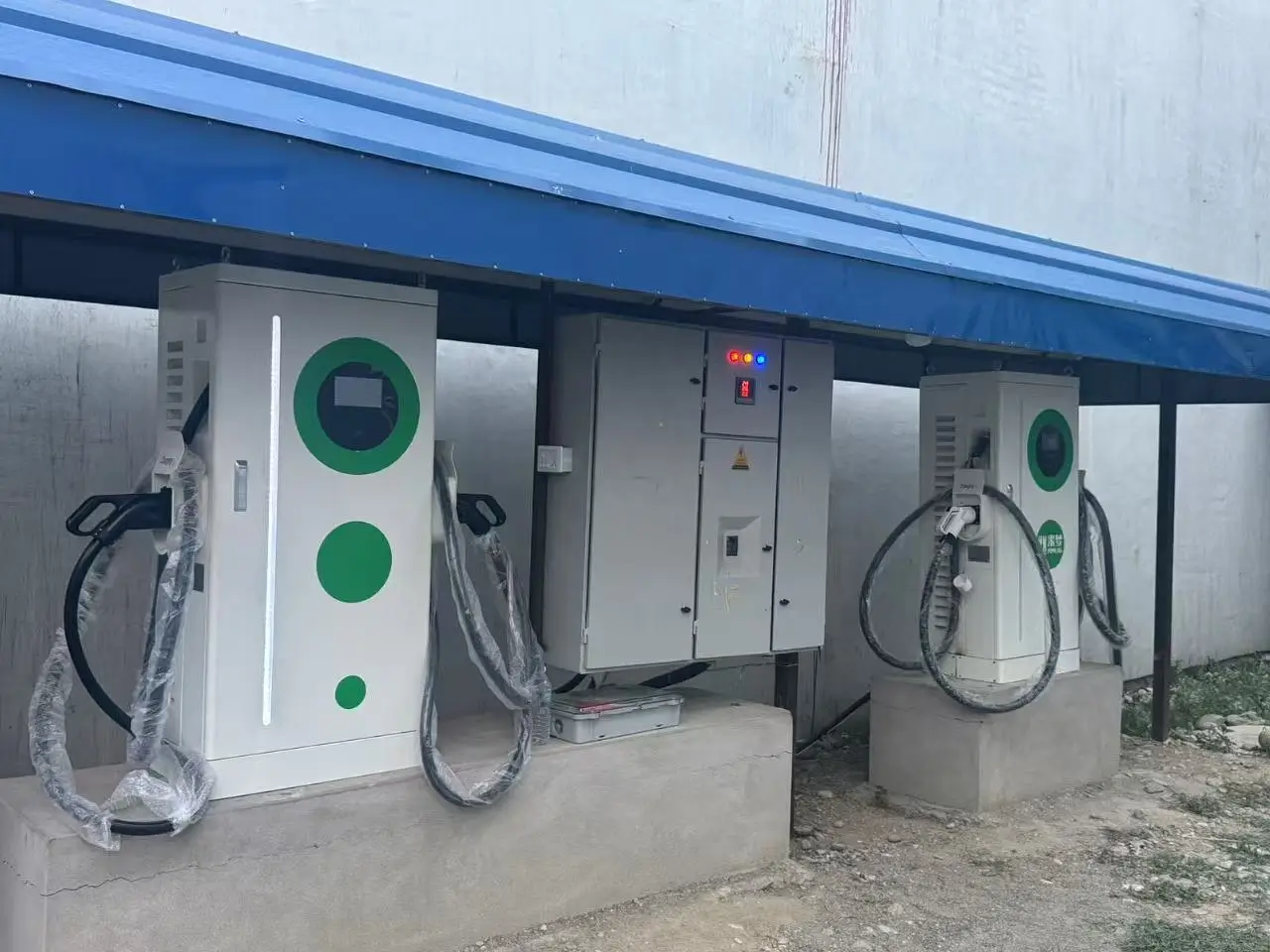

Commercial parking and destination charging

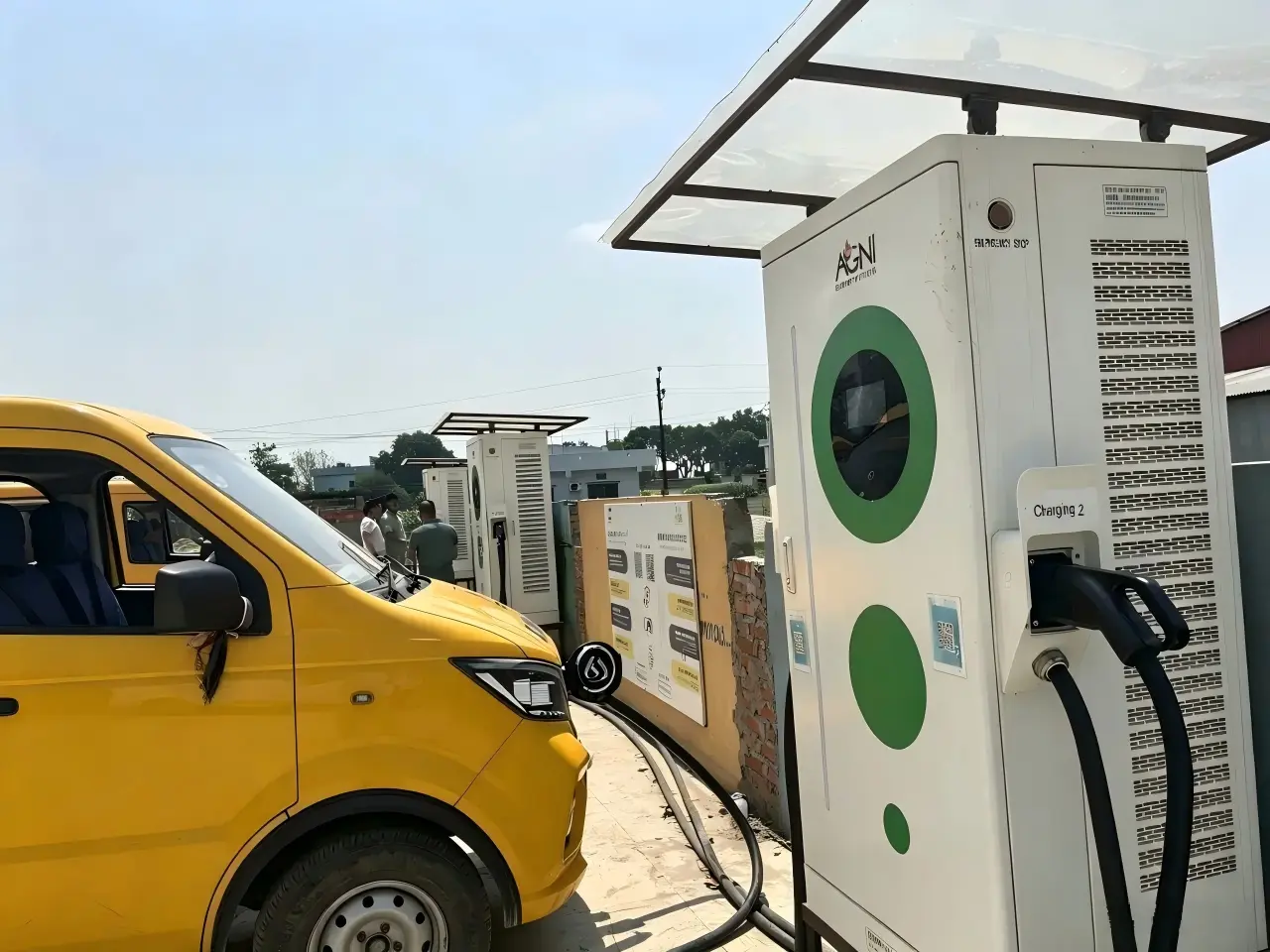

Urban charging hubs
